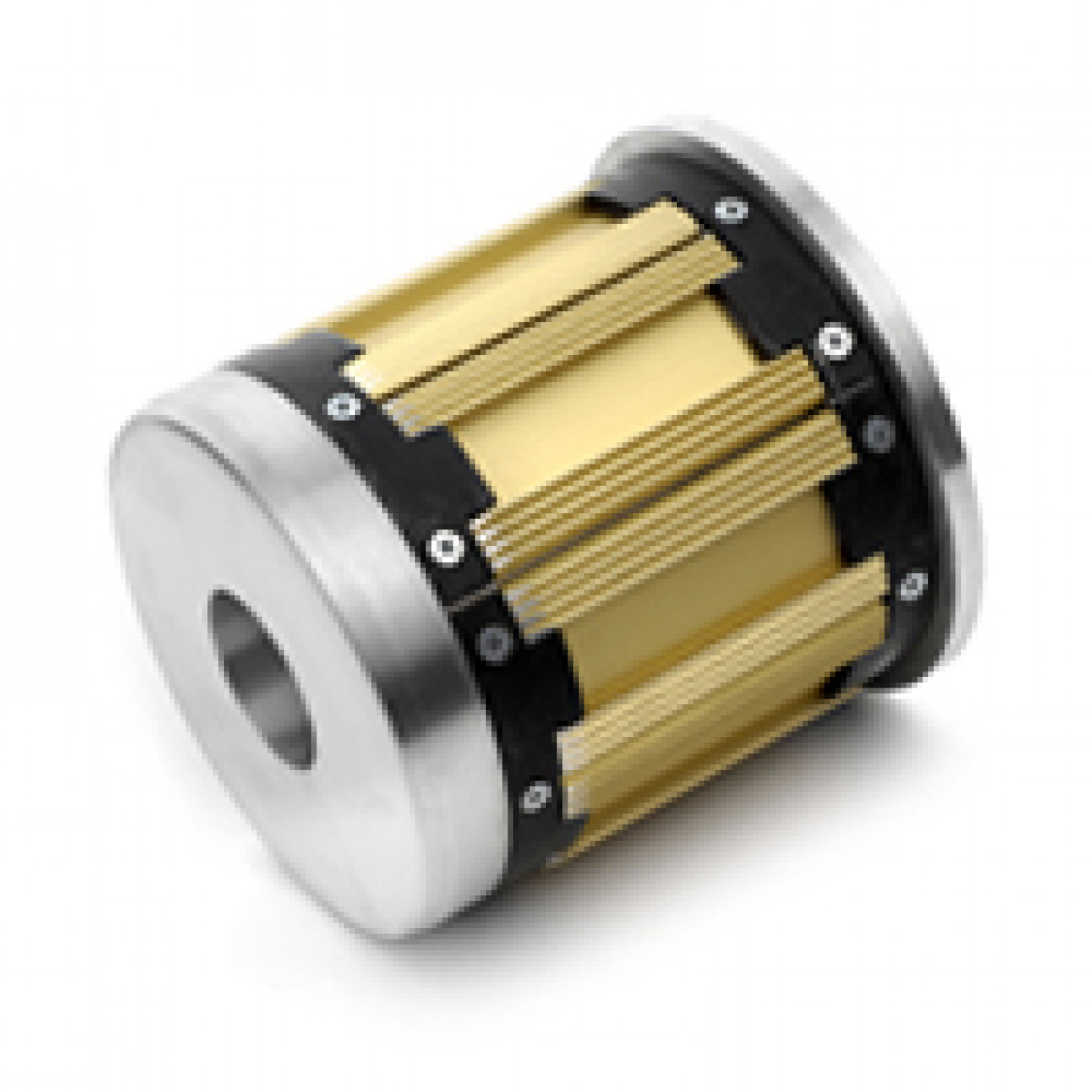

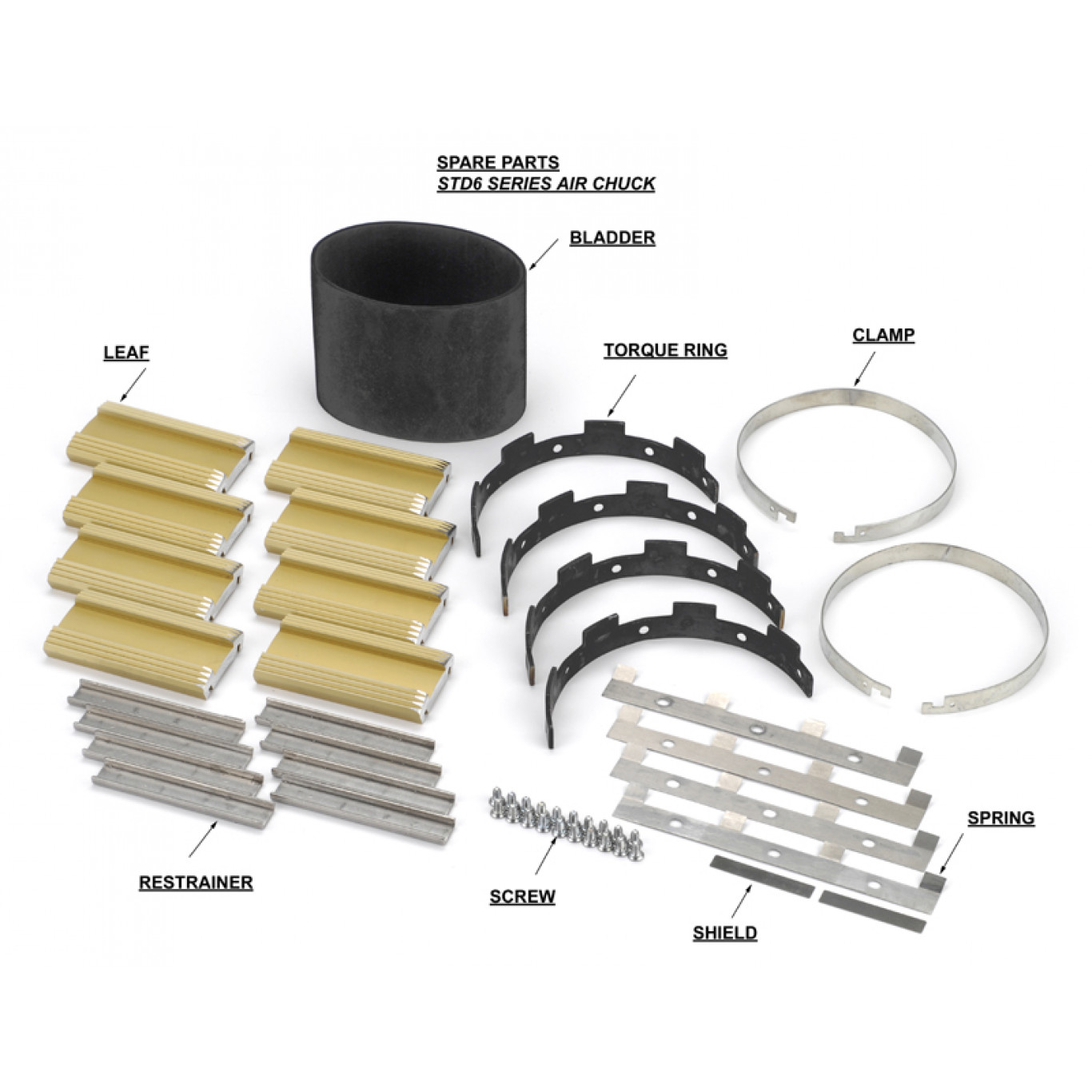

6" Diameter Leaf Type Air Chuck - STD Series

Capacities
Maximum Torque	35.0 ft·lbs (420.0 in·lbs) [4.8kg-m] [47N-m]per linear inch of leaf with a maximum of 175.0 ft·lbs (2,100.0 in·lbs) [24.2kg-m] [237N-m]
Maximum Load	40# [9kg] per linear inch of leaf with a maximum of 280# [127kg]
Core material compatibility	Cardboard (paper); decreased grip on plastic and metal
Expanded Diameter (G)	6.093" (6-3/32") [154.76mm]
Maximum Bore (H)	3.500" (3-1/2") [88.90mm]
Contracted Diameter (F)	5.937" (5-15/16") [150.80mm]
Dimensions
Moment of Inertia	Assume uniform density of aluminum
Drawing	Contact us
3D Model	Contact us
Minimum Leaf Length	2.000" (2") [50.80mm]
Maximum Leaf Length	20.000" (20") [508.00mm]
Features
Material	Aluminum, Black oxide steel, Stainless steel and rubber
Corrosion Resistance	Mildly corrosion resistant in dry environments
Installation
Operating Air Pressure	80 psi [5.5 bar] +/- 5 psi [0.3 bar]
Air Type	Filtered, Regulated, Non-Lubricated
Support
Phone and email Support	Free - Ask an engineer for help
Warranty	1 Year
Condition
Product Condition	New

6" Diameter Leaf Type Air Chuck - STD Series

Categories:

Qty

Product Series

STD

Roll - Fits Core inner diameter

6.000" (6") [152.40mm]

Bore ( Tol: +0.002" to +0.004" [+0.05mm to +0.10mm] )

Securing Method

Flange (Core Stop)

Rear Guide Flange Holes

Air Connection Location

Air Connection Type

Expanding Length (B) ---- Overall Length (A)

Custom Expanding Length

Custom overall length (only fill in if custom was chosen above)

Finish

Your Reference

Can this item be returned and/or order cancelled

Additional Information:

$643.60 Each
