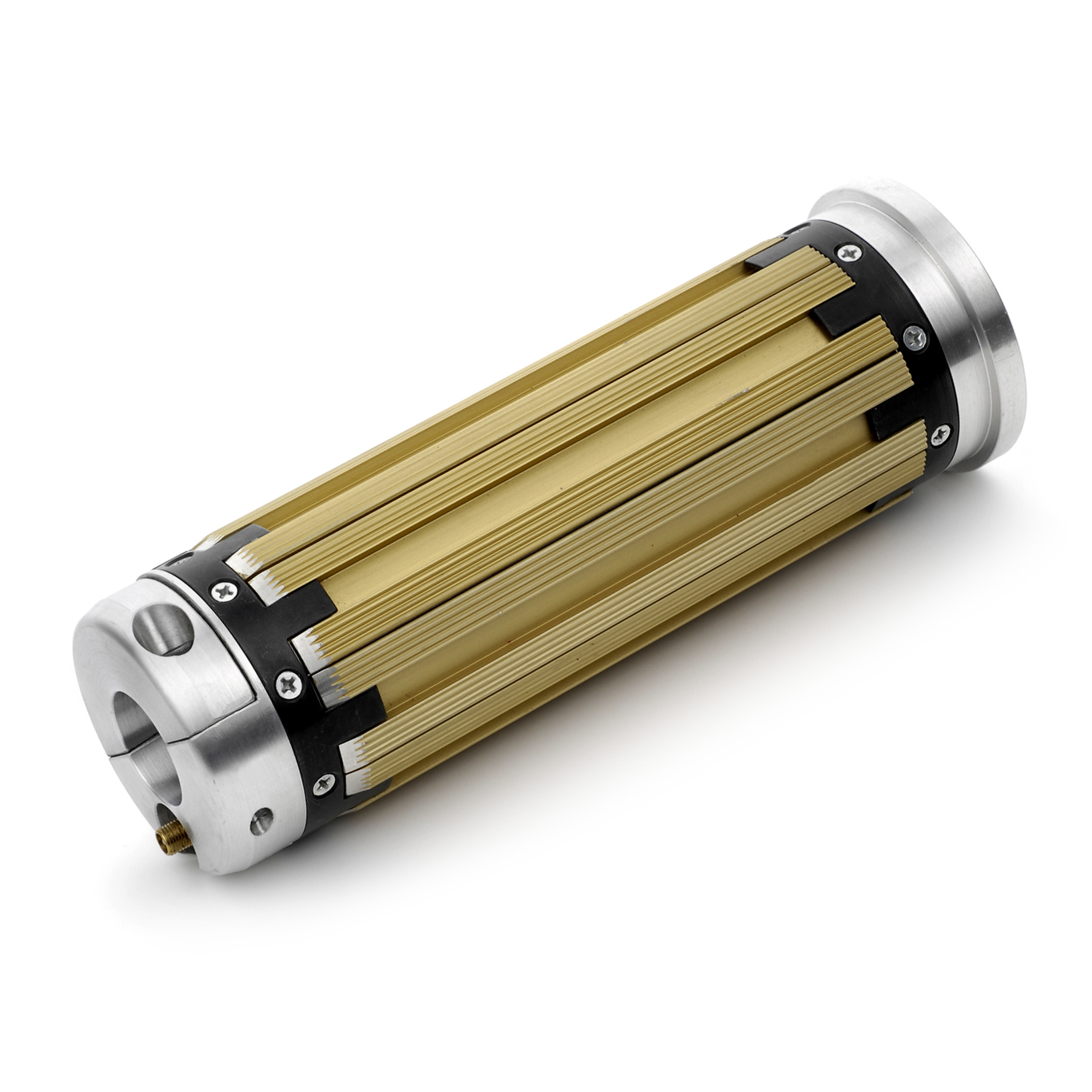

3" Diameter Leaf Type Air Chuck - STD Series


Capacities
Maximum Torque 20.0 ft·lbs (240.0 in·lbs) [2.8kg-m] [27N-m] per linear inch of leaf with a maximum of 91.0 ft·lbs (1,092.0 in·lbs) [12.6kg-m] [123N-m]
Maximum Load 25# [9kg] per linear inch of leaf with a maximum of 140# [64kg]
Core material compatibility Cardboard (paper); decreased grip on plastic and metal
Expanded Diameter (G) G = 3.093" (3-3/32") [78.56mm]
Maximum Bore (H)

Limited by air connection type:

Valve (A-1360 or A-1597): 1.750" (1-3/4") [44.45mm]

1/8 NPT: 1.750" (1-3/4") [44.45mm]

#10-32: 1.969" (1-31/32") [50.01mm]

O-Rings in Bore: 2.000" (2") [50.80mm]

Cross Hole (for O-Rings in shaft): 2.000" (2") [50.80mm]

Contracted Diameter (F) F = 2.937" (2-15/16") [74.60mm]
Dimensions
Moment of Inertia Assume uniform density of aluminum
Drawing Available - please contact us.
3D Model Available - please contact us.
Minimum Leaf Length B= 2.000" (2") [50.80mm]
Maximum Leaf Length B = 7.000" (7") [177.80mm]
Features
Material Aluminum, Black oxide steel, Stainless steel and rubber
Corrosion Resistance Mildly corrosion resistant in dry environments
Installation
Operating Air Pressure 80 psi [5.5 bar] +/- 5 psi [0.3 bar]
Air Type Filtered, Regulated, Non-Lubricated
Support
Phone and email Support

Free - Ask an engineer for help

Warranty

1 Year

Condition
Product Condition

New

3" Diameter Leaf Type Air Chuck - STD Series

    Categories: - Choose your options
  • Part #: Choose Options and Click Add to Cart
  • Availability: Ships in 2 - 4 weeks from our factory in Fairfield, NJ USA
  • $371.61 Each


  • Quantity Discount

    1
    2-41.5%
    5-92.5%
    10-147.5%
    15-2410%
    25-4915%
    50+17.5%



Options
