Replaceable insert type safety chucks with 90° entry angle have the same capacity as the Mill C type but when the pocket does wear out only the insert needs to be replaced.
Shafted Only half of a set. Has a drive shaft for mounting a brake or clutch. Does not include the unshafted side.
| Capacities | |
| Max Roll Weight Each | 3,100# [1400kg] |
| Maximum Torque Shafted Side | 795 ft·lbs [110 kg-m] |
| Dimensions | |
| Drawing |  |
| 3D Model | |
| Features | |

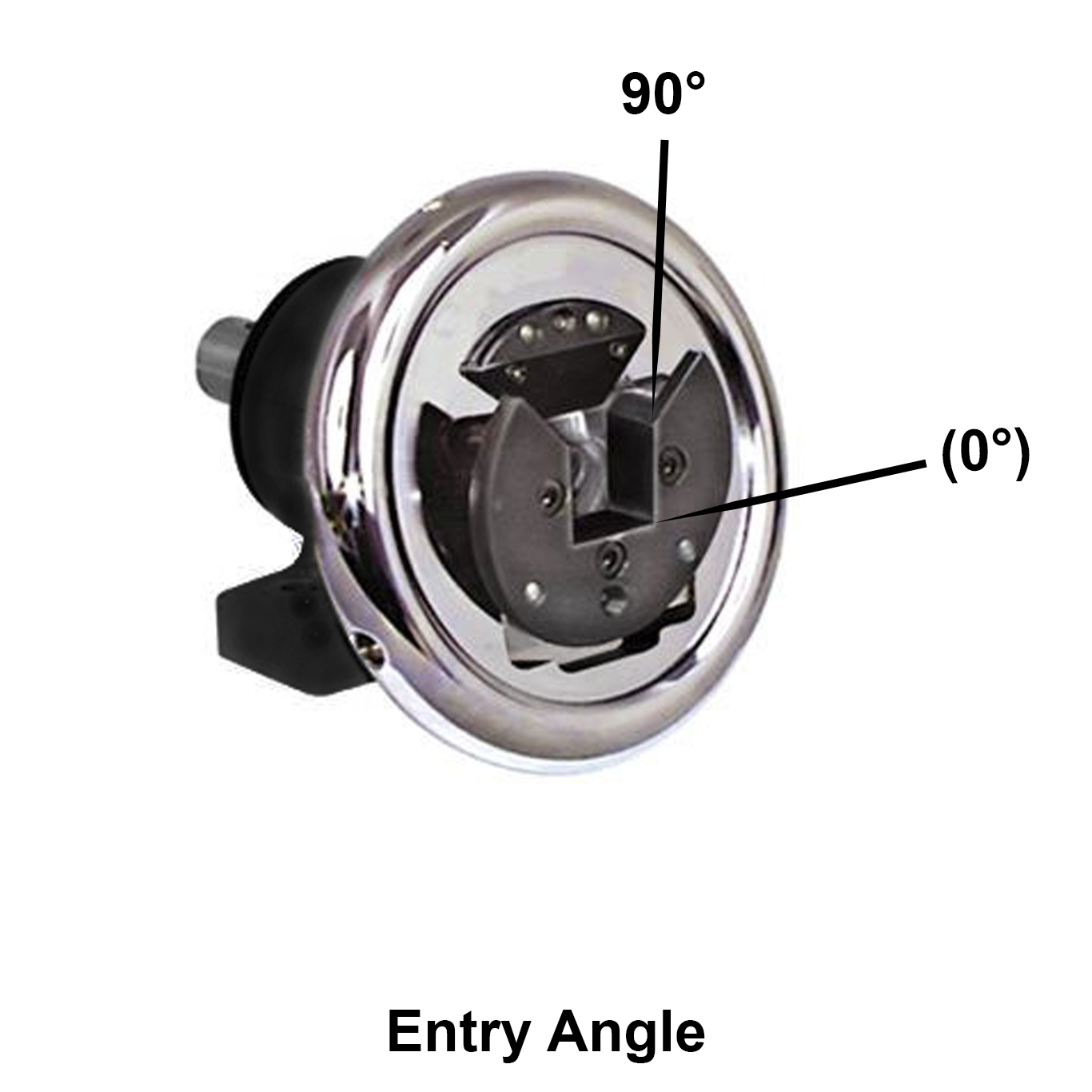

Entry Angle |
90° |
| Replaceable Insert | Yes |
| Sliding Adjustment | No |
| Installation | |
| Mounting | Foot |
Mounting Bolt Size |
0.500" (1/2") [12mm] Dia. |
| Mounting Bolt Distance |
6.299" (~6-5/16") [160mm] |
| Winding Shaft Length Requirement |  |
| Alignment |  |
| Support | |
| Phone and email Support | |
| Warranty | |
| Replacement Parts | |
| Compare To | |
| JRC Web | 500682 |
| Niika | PIW50-VT-1 |
| Boschert | STW 40-50-VT-1 |
| Condition | |
| Product Condition | |

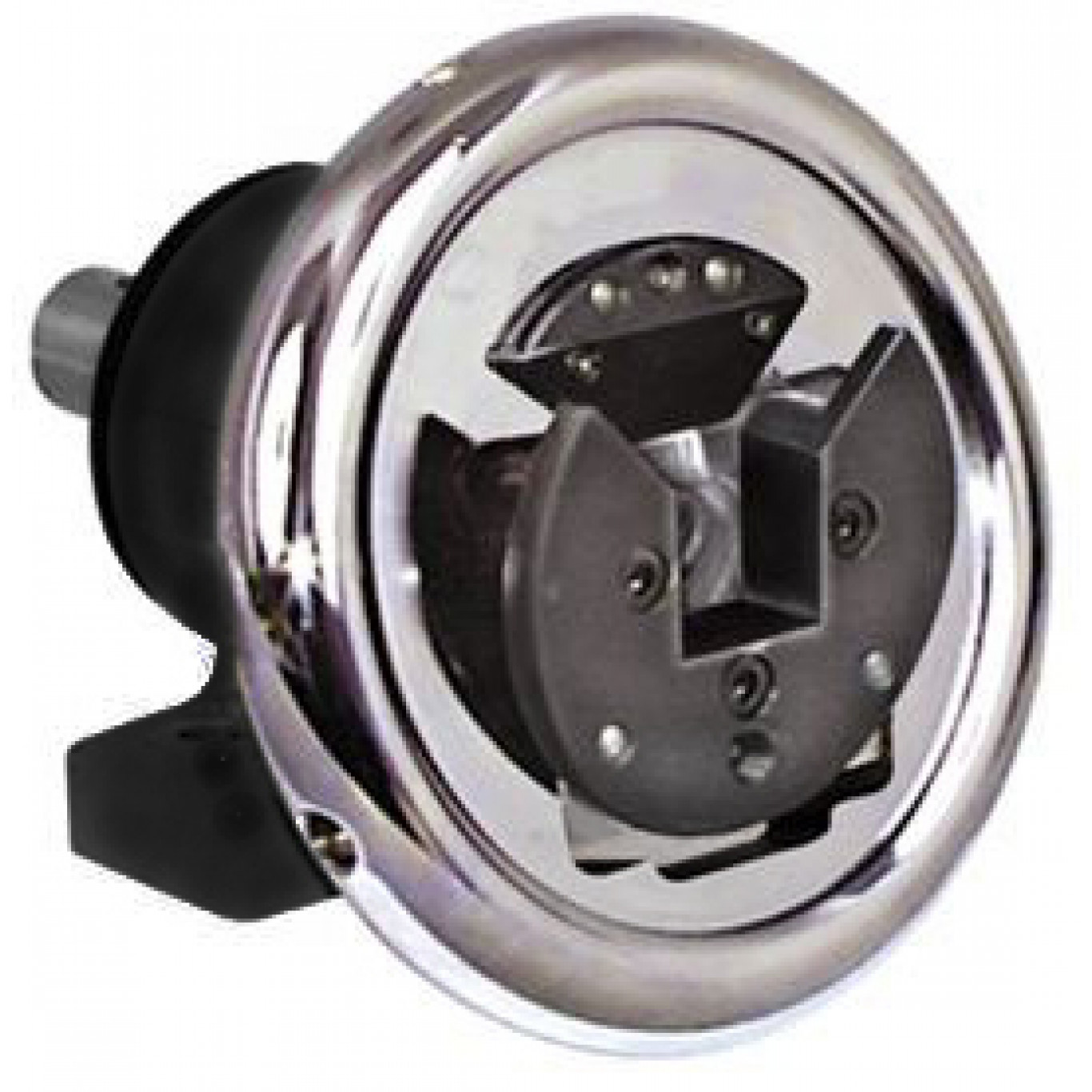

Safety Chuck
- Brand: JRC Web Accessories Categories: - Shafted Side
- Part #: 500682
- Availability: Ships in 4 - 6 weeks from our factory in Fairfield, NJ USA
-
$1,196.93 Each
-
-
Quantity Discount
1
2-41.5%
5-92.5%
10-147.5%
15-2410%
25-4915%
50+17.5%
