Number of Circuits	5
Voltage	300V AC/300V DC
Current Per Circuit	20 A
For Wire Gauge	22-12
Wire Connection Type	Screw Terminals
Terminal Size	No. 6
Length	2 1/2"
Width	7/8"
Height	1/2"
Color	Black
Min. Temperature	Not Rated
Maximum Temperature	257° F
Mounting Location	Surface
Mounting Fasteners Included	No
Mounting Holes
Diameter	0.17"
Number of	4
Center-to-Center Length	2.25"
Center-to-Center Width	0.31"
Specifications Met	UL Recognized, CSA Certified, CE Marked
RoHS	RoHS 3 (2015/863/EU) Compliant
REACH	REACH (EC 1907/2006) (01/16/2020, 205 SVHC) Compliant
Country of Origin	United States

Mount blocks to a panel or the surface of a machine. Also known as barrier terminal strips.

Covers protect the top of the block and prevent accidental contact with a live circuit. They include mounting clips to place between the block and its mounting screws.

Marker strips extend from underneath the blocks to provide a blank space for labeling.

Jumpers connect side-by-side terminals.

Quick-disconnect adapters convert screw terminal connections into quick-disconnect connections.

Specification

Power
Number of Circuits	14
Support
Phone and email Support	Free - Ask an engineer for help
Warranty	1 Year
Condition
Product Condition	New

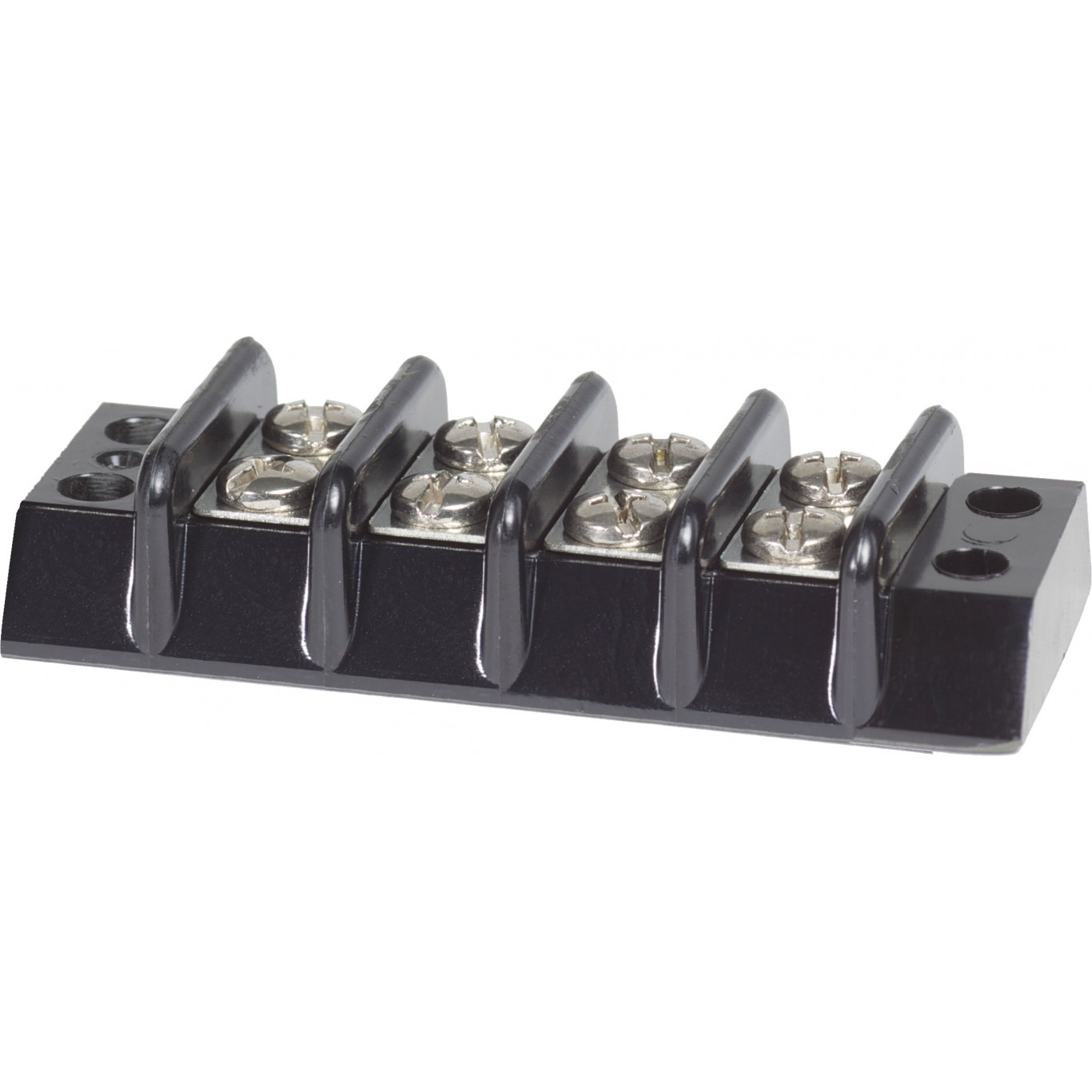

300V AC/300V DC Terminal Block

Categories:

Terminal Blocks

Part #: 500978
Availability: Ships in 2 - 3 days from our factory in Fairfield, NJ USA

$12.98 Each
