Allows a stationary air supply to be transmitted to a rotating air chuck or shaft.
Air-Hydraulic Union
» monoflow design
» self-supported rotating union
» radial housing connection
» balanced mechanical seal
» seal combinations:
Carbon Graphite/Hardened Tool Steel or
Carbon Graphite/Silicon Carbide
» felt oiler in seal cavity for air service
» oiler for relubrication (3 - 5 drops/month)
» low torque
» weight-optimized design
» aluminum housing
» bearings lubricated for life
Drag Torque, with or without pressure / vacuum: 1.7 inch ounces
| Capacities | |
| Maximum Pressure | 150 psi [10.3 bar] |
| Maximum Temperature | 250.0°F [121.1°C] |
| Maximum Speed | 1500 rpm |
| Support | |
| Phone and email Support | |
| Warranty | |
| Documentation | |
| Country of Origin | Imported |
| Condition | |
| Product Condition | |

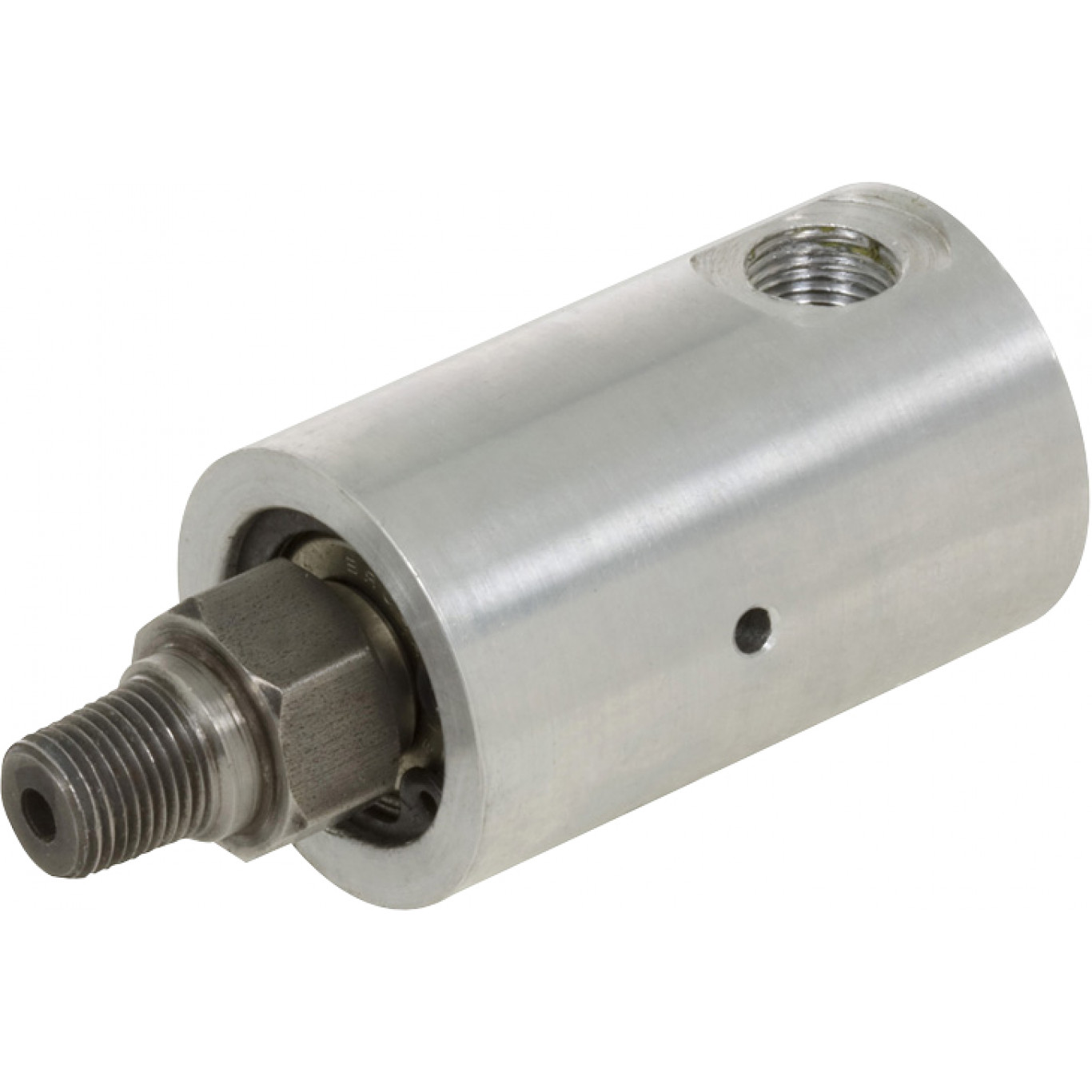

Rotary Union - 1/8" NPT Female Port - 1/8" NPT Male Rotor Air & Hydraulic (B-7248-003)
-
Categories:
- Rotary Unions
- Part #: 501089
- Availability: 50 IN STOCK in our factory in Fairfield, NJ USA that ships in 1 - 2 days. BALANCE ships in 8 - 10 weeks
-
$51.67 Each
