Provides a smooth adjustable tension to your web while unwinding (paying off the roll). Torque can be varied using a controller. For contant torque without feedback use WT-PDC-05 controller. For constant tension with feedback use VA-816 and Load Cell. May also be controlled with a PLC (programmable logic controller) Voltage is constant at 24 volts DC. Vary the current to vary the torque. See table for maximum current. Port for air cooling.
| Capacities | |
| Maximum Torque | 148 ft·lbs [20.4kg-m] [200N-m] |
| Power | 57.6 Watts @ 167.0°F [75.0°C] |
| Attracting Time | 0.25 s @ 167.0°F [75.0°C] |
| Magnetic Powder Weight | 4.94 oz [140.0g] |
| Maximum Speed | 400 rpm |
| Dimensions | |
| Moment of Inertia | 0.0593 #-ft2 [0.0025 kg-m2] |

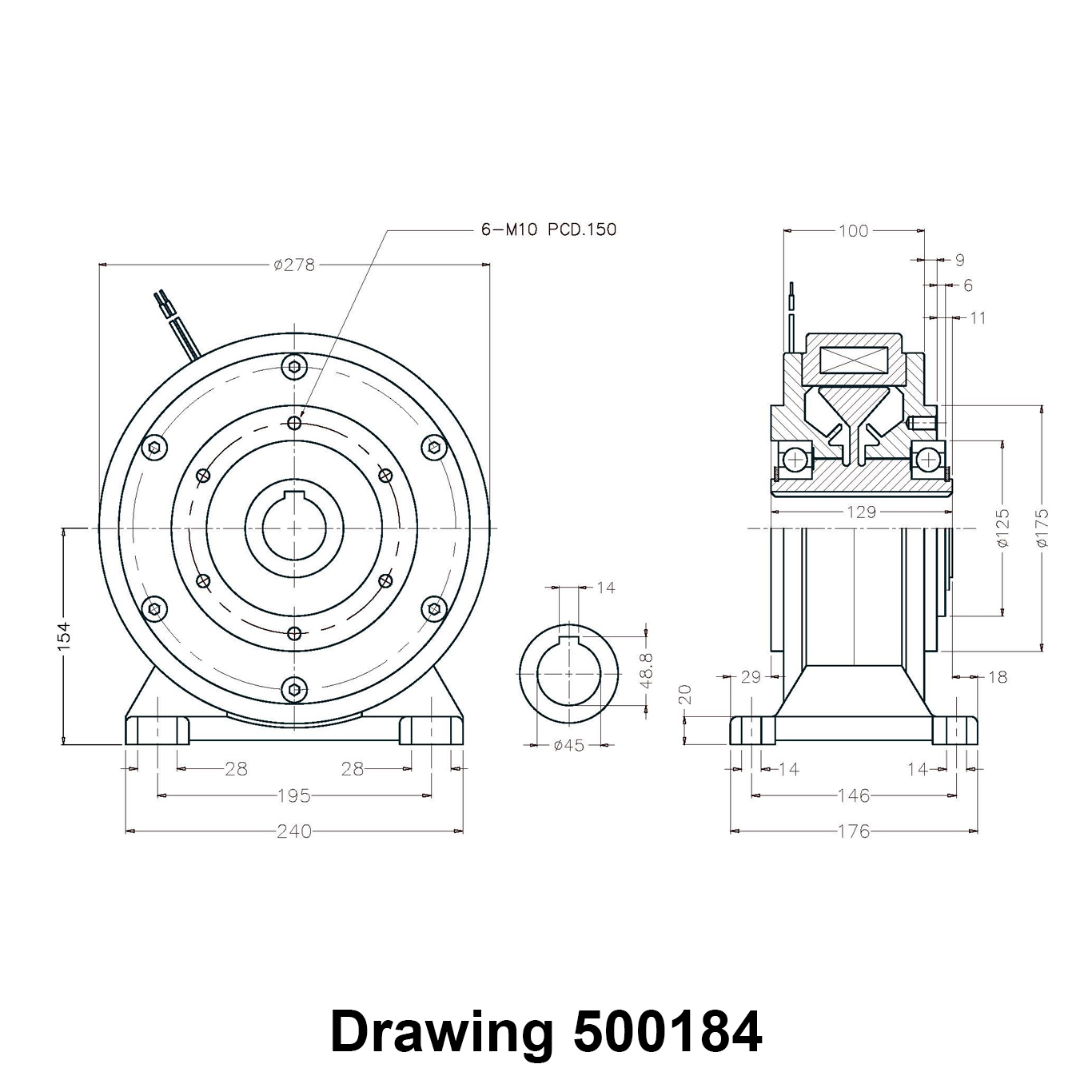

| Drawing |  |
| 3D Model | Contact us |
| Power | |
| Charging Current | 2.4 amps @ 167.0°F [75.0°C] |
| Features | |
| Cooling Port | 3/8PT - Compress air for cooling should be dry and oil free. |
| Installation | |
| Mounting | Foot |
| Support | |
| Phone and email Support | |
| Warranty | |
| Replacement Parts | Powder |
| Compare To | |
| JRC Web | 500184 |
| Condition | |
| Product Condition | |
Powder Brake
- Brand: JRC Web Accessories Categories: - Magnetic Particle Powder
- Part #: 500184
- Availability: Ships in 1 - 2 weeks from our factory in Fairfield, NJ USA
-
$1,857.46 Each
-
-
